H3C CFP2-100G-SR10-MM850 Compatible 100G CFP2 SR10 850nm 150m MTP/MPO MMF DDM Transceiver Module

MOQ : 1

Contact Now

H3C CFP2-100G-SR10-MM850 Compatible 100G CFP2 SR10 Transceiver Module (850nm MMF 150m MTP/MPO DDM)

Product Details

H3C Compatible	CFP2-100G-SR10-MM850	Vendor Name	FIBER MALL
Form Factor	CFP2	Max Data Rate	103.1Gbps
Wavelength	850nm	Max Distance	100m on OM3 / 150m on OM4
Connector	MTP/MPO-24	Transmitter Type	VCSEL
Cable Type	MMF	Receiver Type	PIN
TX Power	-8.0~+1.0dBm	Receiver Sensitivity	< -9.9dBm
Protocols	100G Ethernet, MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FIBER MALL' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

H3C CFP2-100G-SR10-MM850 Compatible 100G CFP2 SR10 850nm 150m MTP/MPO MMF DDM Transceiver Module

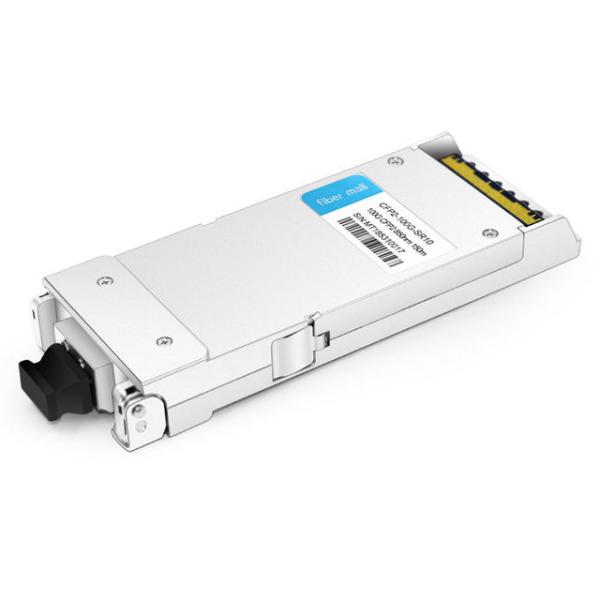

H3C CFP2-100G-SR10-MM850 Compatible 100G CFP2 SR10 850nm 150m MTP/MPO MMF DDM Transceiver Module Images
